Tobacco Paper Hot Air Drying System Highly Integrated Reconstituted

Brand Name : Sanjiangren

Certification : ISO9001

Place of Origin : Hunan, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 30 sets per month

Delivery Time : 4-5 months after the approval of drawing

Packaging Details : Packed in export standard packages

Product name : Reconstituted Tobacco paper hot air drying machine

Material : Stainless steel, carbon steel, aluminium alloy

Color : Customized

Main function : Recycle the original wastes through the paper-making process

Effective drying length : More than 5 times of the existing equipment

Key selling point : Make full use of the heat energy.

Contact Now

Highly Integrated Reconstituted Tobacco Paper Hot Air Drying System

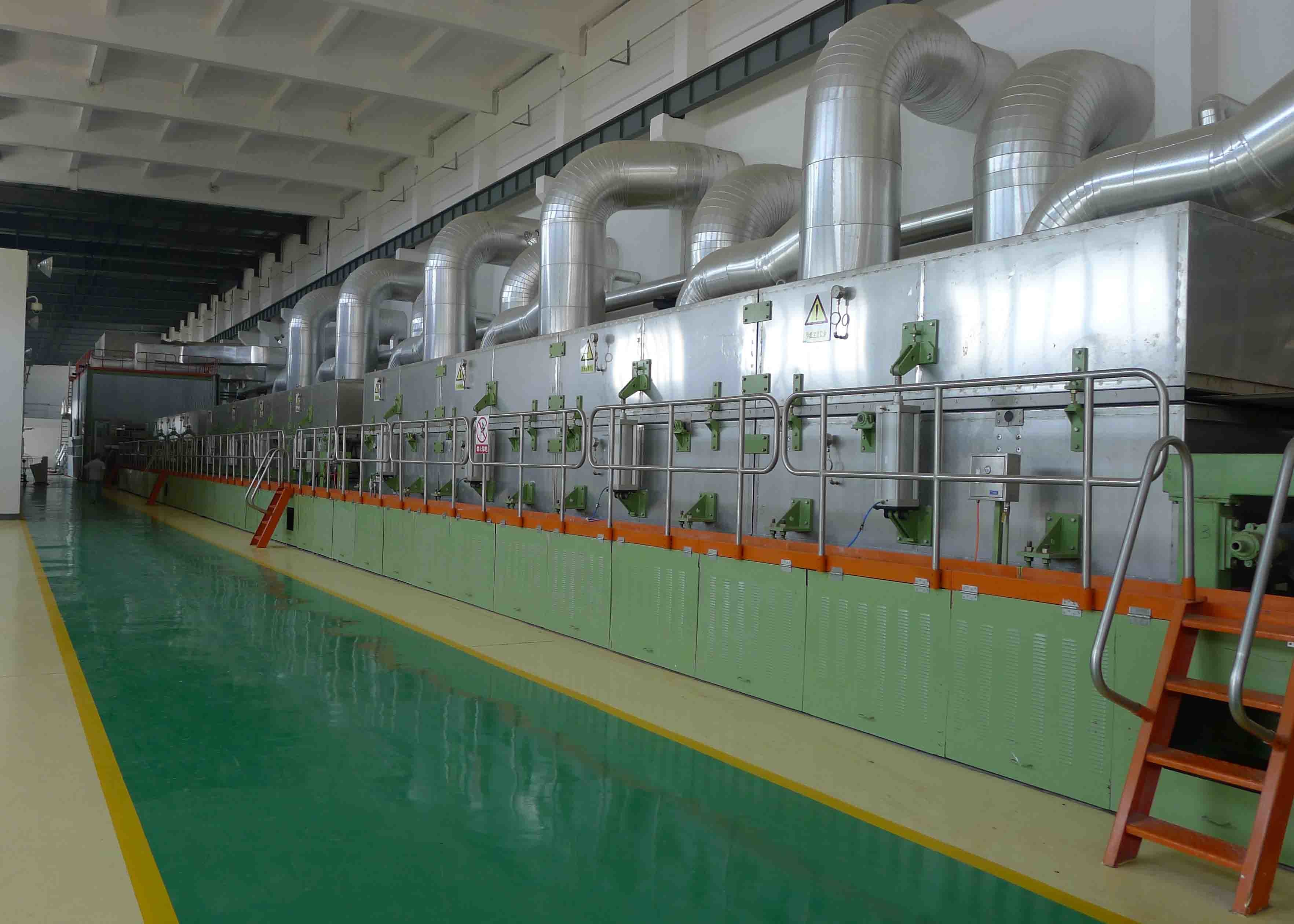

The hot-air drying system of reconstituted tobacco line is mainly composed of hot air drying box, pneumatic opening device, dry web, dry web transmission part, carrier roll assembly, pneumatic tensioning device, pneumatic correction detection device, waste heat recovery system, exhaust air demisting and cooling device, walkway and guardrail, lighting system, water spray system, multi-layer drying channel control and other components.

In order to reduce the effect of temperature on the reconstituted tobacco during the drying process,the reconstituted tobacco was dried at a lower temperature in the whole drying process.

The hot air drying box is single or multi layer paired arrangement.

Material

Aluminum alloy profile, stainless steel, carbon steel

Product features

Highly integrated, under the same product and output conditions, its land occupation is only one third of the current drying method.

The intelligent double-sided hot air drying system with web clamping ensures that the product has no breakpoints in the whole process and greatly improves the product output.

The effective drying length is more than 5 times of the existing equipment, realizing the low temperature and slow drying conditions required by the reconstituted tobacco leaves, and significantly improving the quality of the reconstituted tobacco leaves.

By fully contacting the multistage atomized water with the exhaust air, the flavor components are absorbed, so that the exhaust air can meet the discharge standard. At the same time, the process water of the recovered flavor is used for soaking the raw materials of the reconstituted tobacco leaves, effectively realizing the recycling of resources.

Most of the hot air is recycled, and the exhaust air is recycled by the heat recovery device to preheat the fresh air, making full use of the heat energy.

Advantages

The company has the patented technology of the complete set of Reconstituted Tobacco paper hot air drying system and a number of professional design talents. At present, it has provided multiple reconstituted tobacco paper hot air drying system production lines for Yunnan Zhongyan, Fujian Jinmin, Hunan Jinye and Shandong Zhongyan.

The nozzle of drying box is made of special aluminum alloy die extrusion profiles. The upper nozzle and the lower nozzle is in different structures to improve the operation stability of reconstituted tobacco sheet. One-time molding aluminum has high accuracy. It ensures that the uniform blowing air and error is less than 2m/s.

Our services

Pre-sale service

  1. Provide customization: With over 20 years of customization experience, we are able to customize the machine according to your requirements according to output, site area and structure.
  2. Project planning and design service.
  3. 24-hour online consulting service.

After-sales service

  1. Provide 1 year complete warranty and maintenance service. Discount on spare parts purchase after one year.
  2. 24-hour online guidance and commissioning service.
  3. Provide training services.

Tobacco Paper Hot Air Drying System Highly Integrated Reconstituted
